Description
Bright . Professional . Beautiful
Do you want to create freely in the brightest environment and share your creation on-set? FEELWORLD SH7 with peak brightness of 2200nit which can be used in the brightest of environments, and packed a series of powerful functions.You can easily convert SDI signal input to HDMI output, or you can convert HDMI input to SDI output; you can also output the HD video or image with LUT effect to the director for real-time monitoring in field; by using the F970 external kit on the rear of the monitor, wireless transmission and other devices can be installed to reduce on-site wiring worries. An ideal directors’ monitor, focus pullers’ monitor, program or preview display for video switchers, and perfect for vloggers presenting to camera.

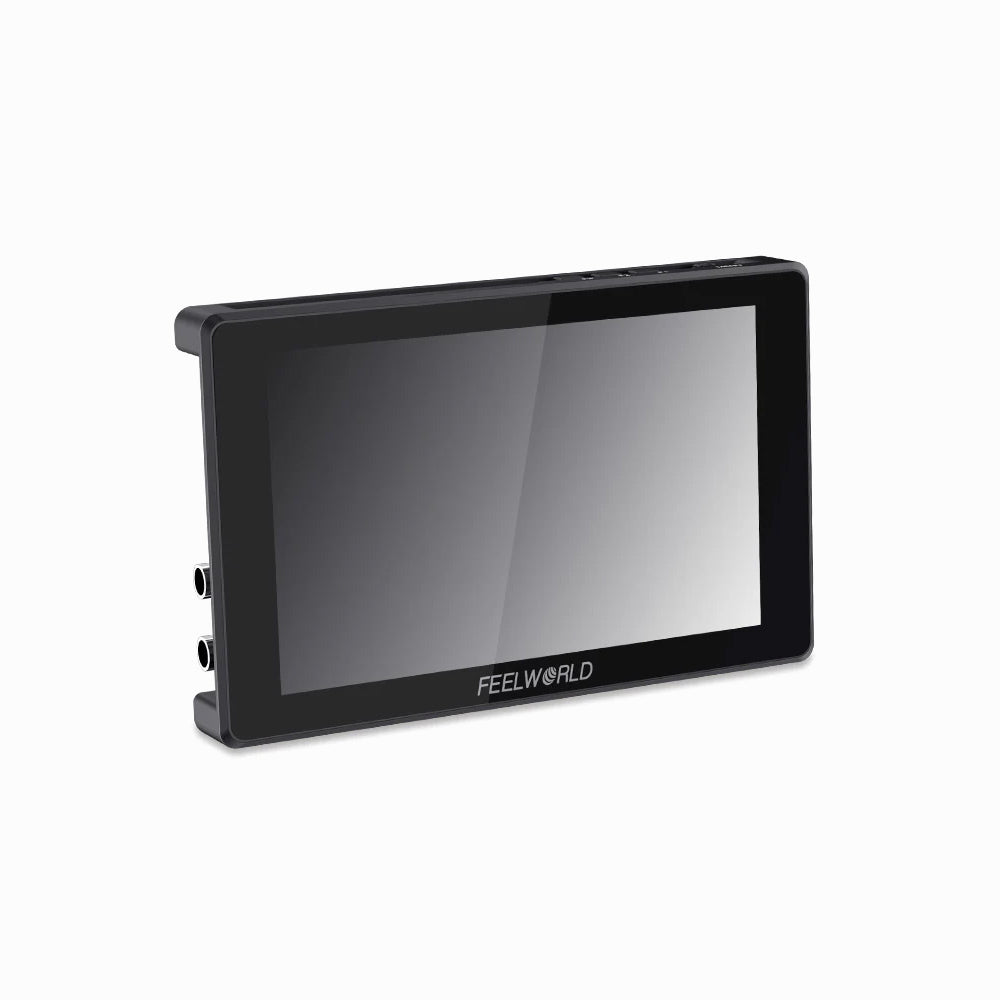

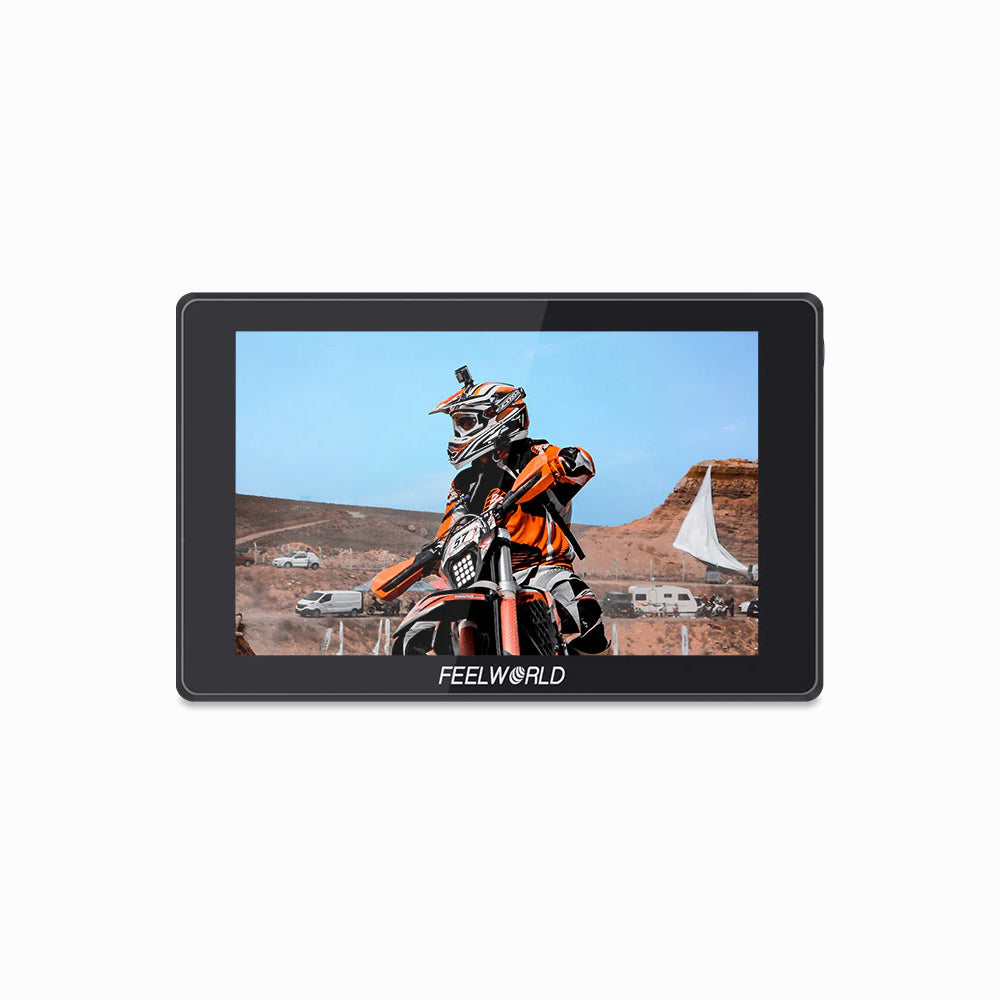

7-inch Full HD Screen
Viewing clearly and capture every detail with confidence
With extremely high resolution 7-inch IPS panel, 16.7M(8bit) colors, provides excellent details and rich color.
Multiple Color Gamut, Meet the Different Needs of Photographers
The monitor supports REC709、DCIP3、BT2020 multiple color gamut, presenting rich color, meet the different needs of photographers for color gamut.
Ultra Bright 2200nits, Daylight Viewable
Ideal for outdoor shooting
The ultra-high brightness makes shooting outdoors in bright sunlight a breeze.
Light Sensor for Auto Dimming
Built-in an ambient light sensor, from a dim studio to a sunny location, from midnight moonlight to noon sunshine, it can automatically adjust the monitor brightness to fit your filming environment.
New UI Menu, More Intuitive and Intelligent
Adopts new UI menu, take the software functions are iconized, it is more convenient and quickly to operate the function.

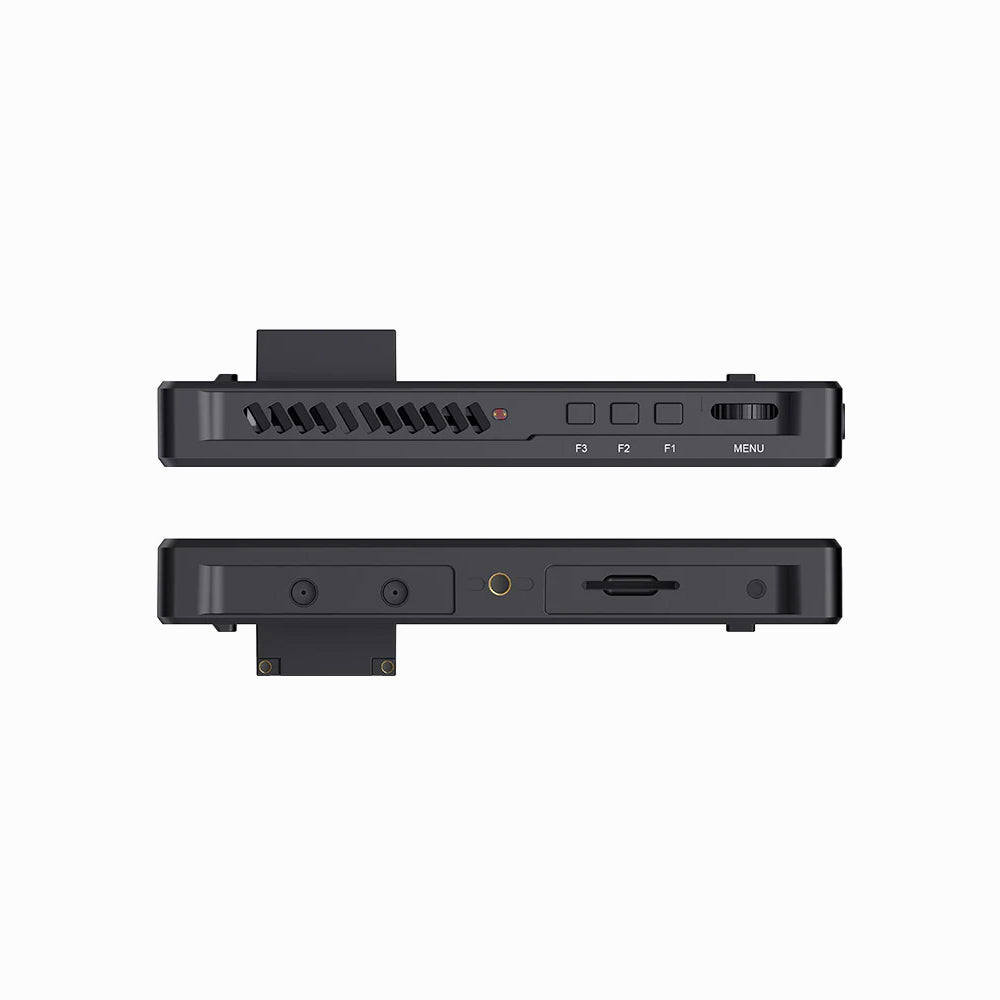

Custom Shortcut Keys
On the top of SH7 comes with three custom shortcut buttons , the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.
Sensitive Touch Screen Control
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via scroll wheel key.
Professional Auxiliary Tools, Help You Focus and Exposure Accurately
SDI Timecode Supporting
SH7 supports time code display under SDI signal, it is synchronization with the camera. It is particularly convenient to identify specific frame rates in film and video production.
Load Custom 3D LUTs，Preview Filming Look in Field Shooting
Support to load 50 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. SH7 allows you to load internally up to 50 custom LUTs, looks or profiles at any time via the SD Card Slot and instantly select between them, maintaining creative intent, always.
3D LUT Loop-out
HDMI/SDI can output the video or image with 3D LUT effect. When you are live streaming, you can connect the SH7 output as a live broadcast image to add a cinematic ; when shooting on-set, you can output the image with LUT to the director or client for real-time monitoring by connecting a wireless device to strengthen teamwork.
HDR Monitoring
What you see is what you get
Supports HDR (high dynamic range) monitoring, for incredible clarity and detail, simplifies the complexities of shooting Log and HDR, helping you to replicate post-production workflows at the moment when it matters most–while shooting. When the HDR function is turned on, you can select Gamma and Gamut corresponding to the camera Sony, Canon, Panasonic, Fujifilm, Bolex, RED, ARRI.
Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. SH7 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
SDI and HDMI Input and Output
Compatible with movie cameras, DSLR cameras
SDI perfect for the movie cameras，HDMI easy to connect with DSLR or mirrorless camera. Connect to external display via output port,allows the director and photographer monitoring synchronous. And provides 3.5mm headphone jack to monitor audio.
Note:The HDMI output resolution of camera need to support 1920x1080 or Auto mode.
HDMI and SDI Cross Conversion，Easy to Handle Various Application
SH7 built-in signal cross conversion, allows you to convert HDMI to SDI signal or SDI to HDMI signal. You can easy to convert signals and needn't the additional converters. Can be used for various broadcasting and live production.
Built-in Cooler
Built-in cooler, don't worry the monitor work for long time.
Innovative External Install and Power Design
Simplify your photography equipment
A Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter and others that can be powered by a Sony F970 battery. This innovative external power supply design meets the need to power for external wireless transmission, LED light and other equipment, greatly saving the space occupied by the equipment and reducing the weight of photography equipment.
DC Power Input and Output
The SH7 is not only equipped with DC IN 12V (suit for use 12/1.5A adapter), but also provides auxiliary power out (DC OUT 8V) allowing shooters to power their cameras. With a battery adapter cable (Optional), the SH7 extends camera run-time, while providing a more usable display.

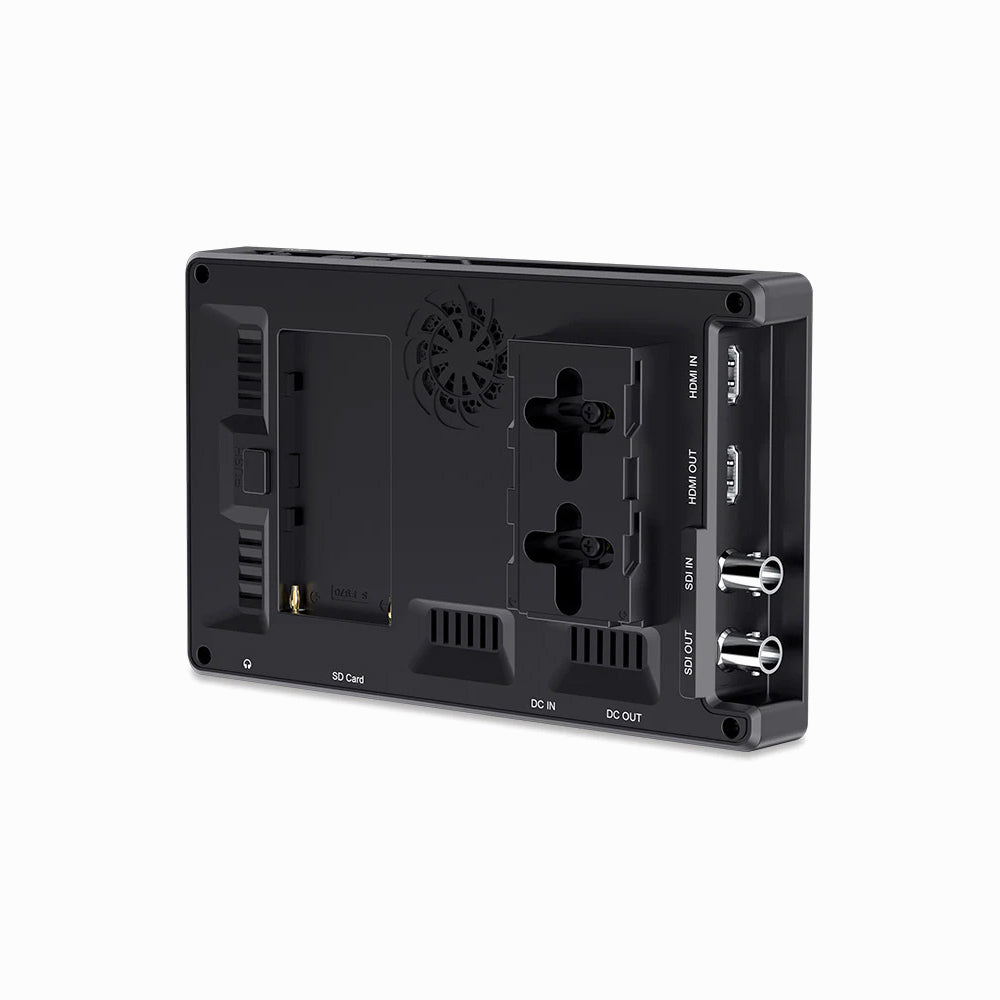

NP-F Battery Plate,Long-lasting Power for Outdoor Shooting
Long-lasting power for outdoor shooting
The rear of monitor of SH7 has a battery plate, can install standard NP-F battery, no need power for your bright screen when outdoor shooting. Install one F970 battery (6600mah) last for about 3 hours.
● Compatible Sony NP-F Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 series (Note: the battery not including, please purchase separately. Higher capability (working time) will be longer)
Multi Languages Supporting
SH7 built-in up to 9 languages, meet the different needed.

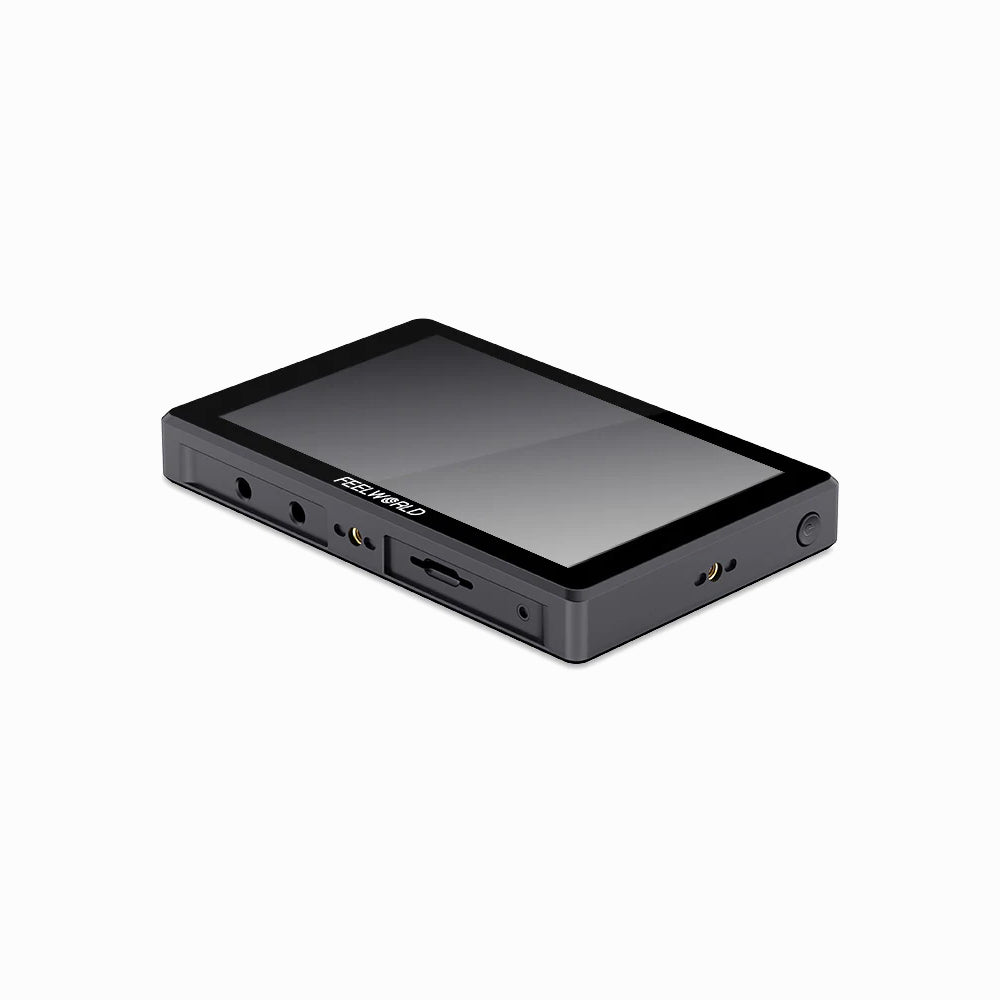

Multiple Mounting Points, Meet Different Need of Monitoring
The monitor is equipped with 2 standard 1/4”mounting threads (bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.

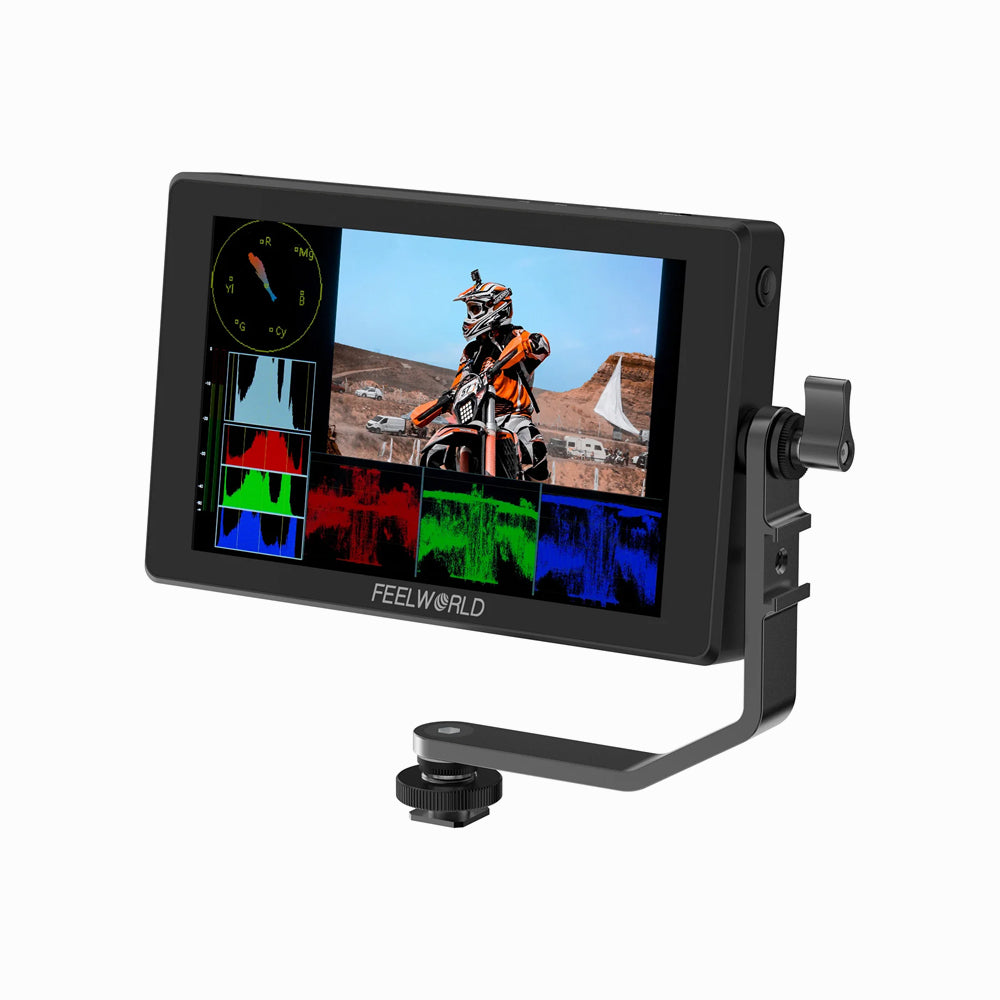

Convenient Mounting - Tilt Arm
The monitor included a Tilt Arm, shooters will have a secure way to position their monitor while maintaining a low profile.
•The monitor can be rotated 360°with two different ways, for viewing convenience.(1. rotate 360°from up to down through the side mounting point of tilt arm; 2. rotate 360°from left to right through the bottom mounting point of tilt arm).
• Secure and lightweight mounting via shoe mount or 1/4"-20 thread
• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.
The monitor included a Tilt Arm, shooters will have a secure way to position their monitor while maintaining a low profile.
•The monitor can be rotated 360°with two different ways, for viewing convenience.(1. rotate 360°from up to down through the side mounting point of tilt arm; 2. rotate 360°from left to right through the bottom mounting point of tilt arm).
• Secure and lightweight mounting via shoe mount or 1/4"-20 thread
• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.
• There are two small dots on the tilt arm, which are aligned with the monitor for installation, the connection is more stable, just grab the monitor to rotate without loosening the screws.
FEATURES
*7-inch 1920x1200 full HD IPS screen
* Touch screen menu operation, improve shooting efficiency
* 2200nits daylight viewable (Light Sensor)
* New menu interface, more intuitive and intelligent
* With SDI & HDMI cross conversion
* Both HDMI and SDI support LUT loop-out
* Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 50)
* HDR monitoring, what you see is what you get
*Sony F970 external install and power kit design can be used to install and supply power to external equipment, easy to install and disassemble, simplify your photography equipment.
* With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, help you accurately exposure and focus every shot.
* Flexible power supply DC IN 12V and NP-F battery slot, meet the different selection.
* Stereo Earphone output
* DC 8V power out to power your DSLR camera or mirrorless camera
SPECIFICATIONS
Display Spec.
| Model | SH7 |
| Screen Size | 7" IPS |
| Resolution | 1920x1200 pixels |
| Pixel Pitch | 0.07875 (H) × 0.07875(V) (mm) |
| Aspect Ratio | 16:10 |
| Brightness | 2200cd/m² |
| Contrast Ratio | 1200:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Input
| 1 X SDI | 3G-SDI |
| 1 X HDMI | HDMI 1.3 |
| 1 X SD Card | SD Card Slot (LUT files and firmware update file import) |
Output
| 1 X SDI | 3G-SDI |
| 1 X HDMI | HDMI1.3 |
| 1 X DC | Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor. |
Audio
| Audio | 3.5mm Stereo Headphone |
SDI Support Format
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080i (60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
HDMI Support Format
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080i (60/59.94/50) |
| 1080p (60/59.94/50) |
General
| Input Voltage | DC7～24V |
| Power Consumption | ≤15W |
| Working Temperature | -20°C~50°C |
| Storage Temperature | -30°C~60°C |
| Install Way | 1/4"-20 Thread ( Right,Bottom) |
| Unit Size | 186.8Lx118Hx23D(mm) |
| Unit Weight | 420g |
| Color Box Size | 222L*158W*78H(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 535*230*405 (mm) |
| Gross Weight | kgs |
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.
Advanced Features
| * Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 50) |
| * Waveform (RGB, YUV, Y) |
| * HDR |
| * Vector |
| * Histogram (RGB,Y ) |
| * Embedded Audio |
| * Focus Assist(Yellow, Magenta, Cyan, Red, Green, Blue, White seven focus colors optional; 1~8 focus level adjustable) |
| * False Colors (Spectrum, ARRI) |
| * Zebra Exposure (0IRE～100IRE adjustable) |
| * Check Field (Red, Green, Blue, Mono) |
| * Scan Mode (Under Scan, Over Scan) |
| * Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag) |
| * Mirror (Auto, Flip H, FlipV ) |
| * Image Freeze |
| * Center Marker |
| * Time code(for SDI signal) |
| * Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1, 4:5, 9:16: 1.85:1, 2.35:1) |
| * Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1) |
| * Cinema Guides(16:9, 16:10, 4:3, 1.85:1, 2.35:1, 2.41:1, 1.91:1, 5:4, 1:1.91) |
| * Marker Color (Yellow, Magenta, Cyan, Red, Green, Blue, White) |
| * Nine Grid (3x3, 4x4, 5x3, 5x5, 6x4, 6x6) |
| * Zoom (1.0x～5.0x) |
| * Pixel to Pixel |
ACCESSORIES
Packaging List:
1× Monitor
1× Mini/Micro HDMI to HDMI Cable
1× Tilt Arm
1× Disassemble Wrench
1× Manual
